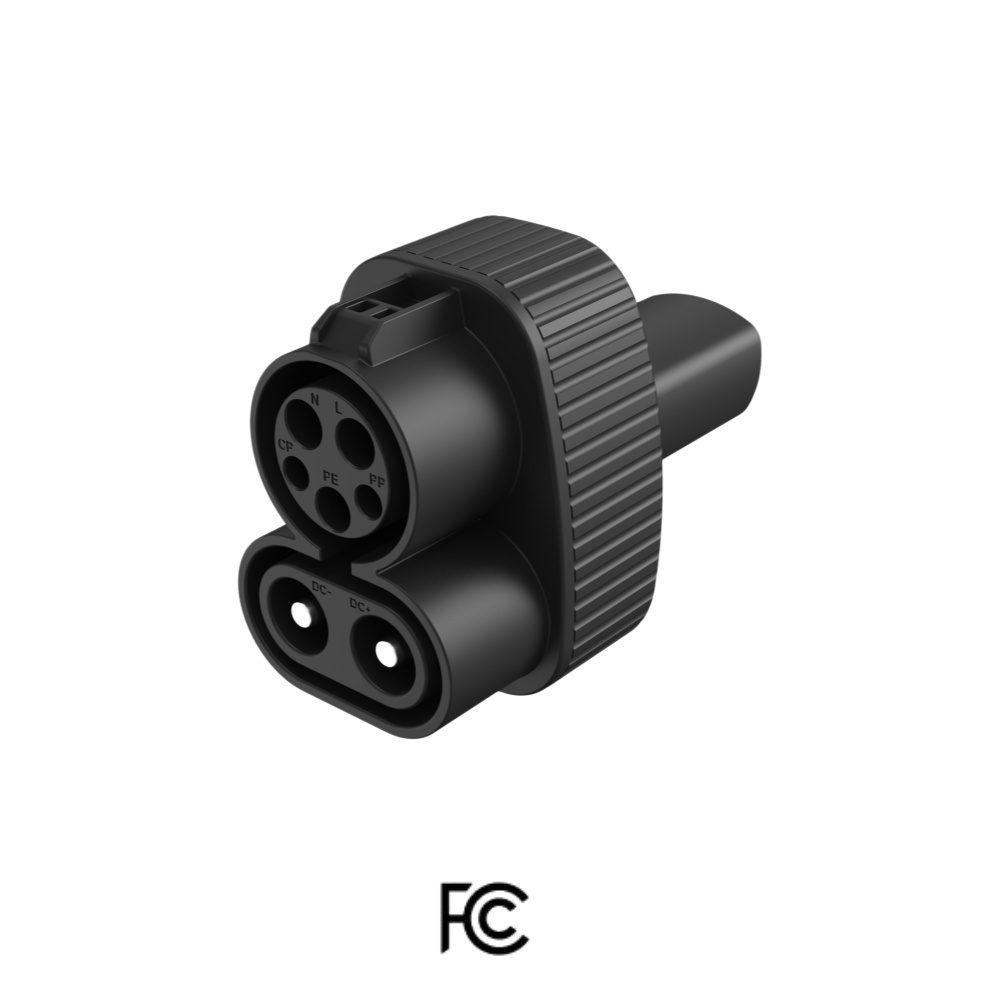

DC CCS1 to Tesla Male EV Charging Adapter.

No.CT-01
• Compatible with all Tesla Model (S, 3, X and Y).
• Rated Temperature: -22F(-30C) to 122F(50C).
• Input/output: 1000V AC, 50 to 60Hz.
• IP rating: IP55.
• Terminal material: phosphor copper, 5u silver plating.
Download
View all downloads
  • CCS1 to Tesla Male EV Charging Adapter.,ShinCharge | Electric Vehicle Charging Products OEM & ODM Manufacturing | EV Charging Cable | Portable EV Charger | Wall-mounted EV Charger | EV Charging Station,CCS1 to Tesla Male EV Charging Adapter.

Description

Executive standard
UL 2251 & SAE J1772
Model No.
CT-01 (CCS1 to Tesla adapter)
Rated power
175KW Max
Rated voltage
DC 1000V
Product features
Excellent waterproof and dustproof performance.

Product Testing
① ‌Water-proof testing With waterproof seal design and meet IP55/IP65 standards. Can be used even in raining and snowing weather.
② Vehicle run over testing Test each charging cable for impedance resistance, high voltage, open / short.
③ Burn-in aging testing High-voltage real usage testing for 6 hours for each charger.
④ ATE platform Systematic testing for over / under voltage, Over / under current, CC/CP communication, RCD, leakage protect, grounding.
⑤ Temperature rise testing Terminal temperature rise: <50K.
⑥ Comprehensive testing Test each charging cable for impedance resistance, high voltage, open / short.
⑦ Automatic plug testing Mechanical life: no load plug in / pull out >10000 times.
⑧ Tension testing Coupled insertion force: >45N <80N.
⑨ Salt spray chamber Mainly test the metal surface corrosion performance of connector.
⑩ Air-leakage detector Test waterproof effect of the products.
⑪ Wire bending testing machine The swing parts move left and right at an angle of 90°; cyclic bending to test the bending resistance of the jack and conductor of the cable.
⑫ Glow wire tester Test the stability of electrical products, parts at high temperatures can not ignite or ignite other parts.

⑬ Constant temperature & humidity box Simulated outdoor environment: high temperature, low temperature and humidity staggered cycletest to verify the service life of the product in different environments.
⑭ Tracking test Apparatus Detect the failure of the insulating material itself or the insulating function caused by the conductive substances deposited on the surface.

⑮ Adhesion tester Test adhesion power or detaching force of the PC plate on the product.
⑯ RCD tester Test leakage respond speed and leakage respond value of leakage protection designed in the charger.
⑰ Swing box tester To simulate in the process of product packaging and transportation whether the product is damaged, scratched, or the inner box is damaged during transportation.
⑱ Wire flexure testing machine Use to test the bending resistance of wire.

⑲ Aging test The specimen is subjected to 136°C for 168 hours. Heat aging resistance is assessed by the change in tensile strength before and after aging (≤30%).
⑳ Oil resistance aging test The European standard wire is tested at 100±2°C for 168 hours, while the American standard wire is tested at 60±2°C for 168 hours, to inspect the specimen for any damage.

㉑ Digital measuring projector Measuring wire jacket / insulation thickness and eccentricity.
㉒ Core wire withstand voltage test A set high voltage is applied to rigorously test the insulation strength of the wire, ensuring that the product will not suffer breakdown or electric leakage during use.
