Description

Product Description

Targeted Connectivity for Versatile Users

Designed for a wide array of electric vehicle owners and commercial operators, this wall mounted ev charger facilitates seamless integration with diverse EVs by supporting Type 1, Type 2, and NACS (Tesla) connectors. The unit is suitable for deployment by wall charger suppliers and entities seeking a robust home ev charger or commercial charging solution that balances convenience with scalability. Its modular system supports multiple rated power levels from 7KW to 22KW, ensuring adaptable output capacity tailored to user energy requirements, whether for single-home installations or multi-vehicle premises utilizing wallbox ev charger technology.

Robust Engineering and Compliance Standards

This wallbox ev charger manufacturer emphasizes technical excellence, incorporating multi-layer safety mechanisms such as leakage current protection, overcurrent and surge safeguards, voltage stabilization, and temperature regulation. The IP65-rated enclosure and TPU-jacketed cable extend durability under harsh environmental stresses. Electrical specifications include rated currents of 16A to 48A, compatible with both single-phase and three-phase grids, and chipset precision featuring MCU control enhances operational reliability. Certification through CE, UKCA, RoHS, TUV, CB, FCC, and Energy Star standards verifies compliance with international regulatory frameworks vital for system integrators and wall charger factory partners.

Industry Applications and Integration Benefits

The charging solution serves sectors ranging from residential property management to commercial fleets and public infrastructure projects needing secure, resilient charging stations. Its user authentication via card swipe and app control facilitates access control and usage tracking critical in shared environments. Adaptable mounting and cable customization options promote installation flexibility across variable architectural conditions. By incorporating this ev wall charger into existing power infrastructures, companies and institutions optimize resource allocation through efficient energy management, compliance adherence, and enhanced user access control, fostering operational efficiency and forward-compatible network deployment.

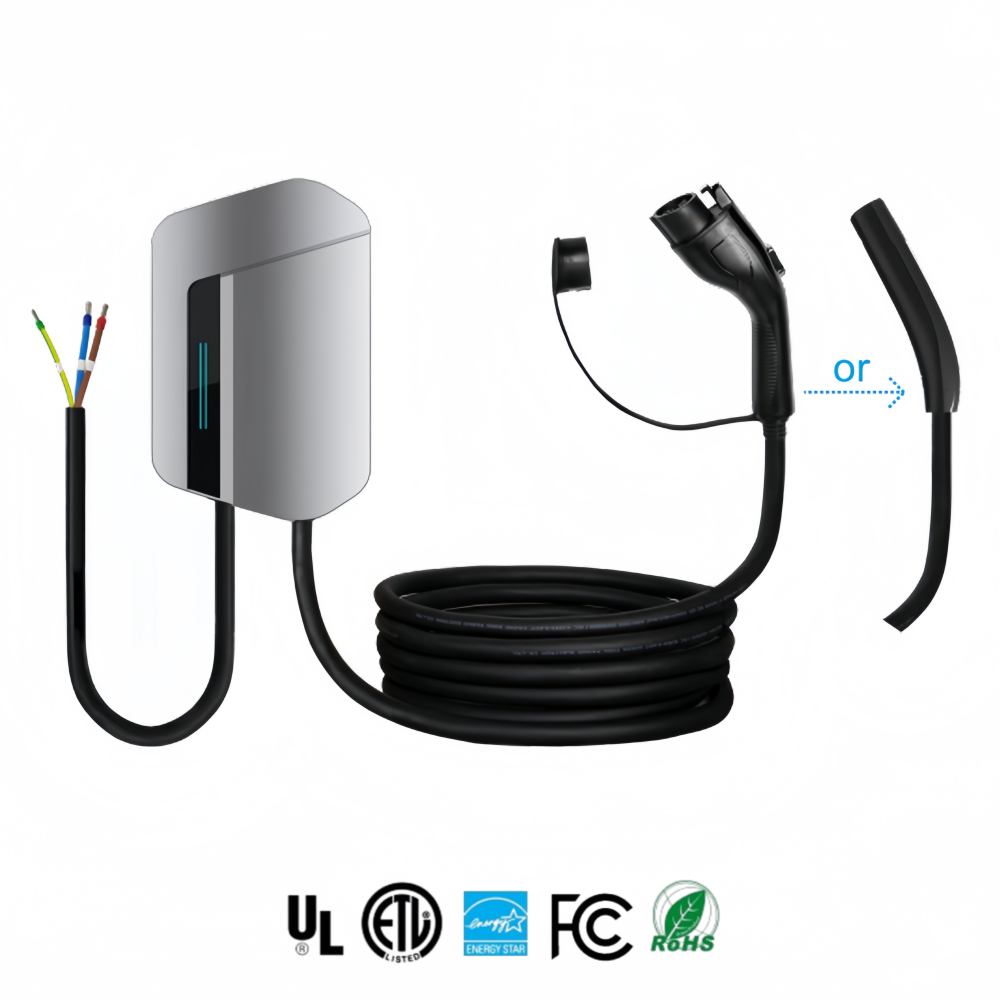

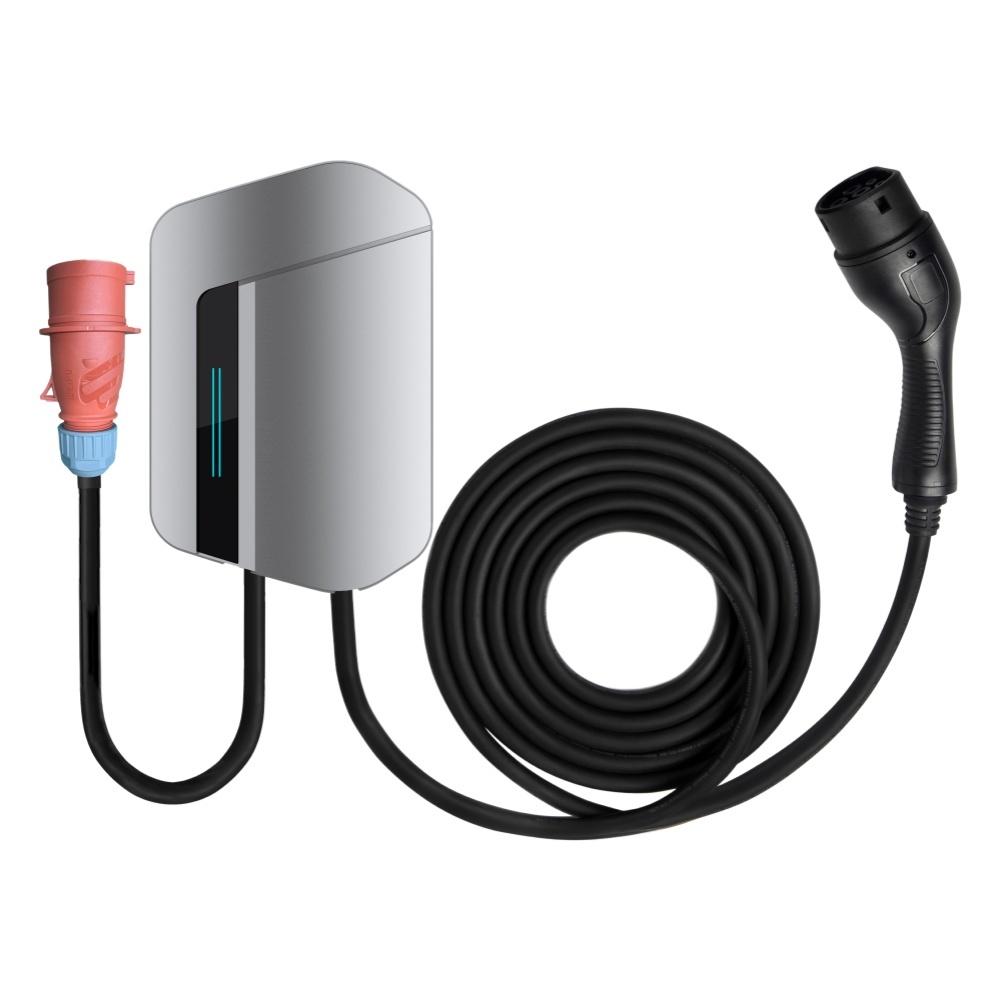

Specification	• Wall EV Charger, CE(EN61851), UKCA, RoHS, TUV, CB, FCC, ETL(UL2594), Energy Star. • EV charging cable TPU jacket (CE EN62196 / TUV certified) • Indicator Light to show work situation(R/G/B); Shells 100% pure PC • Leakage protection: Type B(RCD 30mA AC+6mA DC) ; MCU chipset from ST • IP65, Weather proof; Leakage current protection; Impact resistance, Over current protection, Ground protection, Surge protection, O/U voltage protection, O/U frequency protection, Over temp protection • Power cord open, ready to assemble into electricity / or with power plug • Start mode: card swipe / plug&play / App control

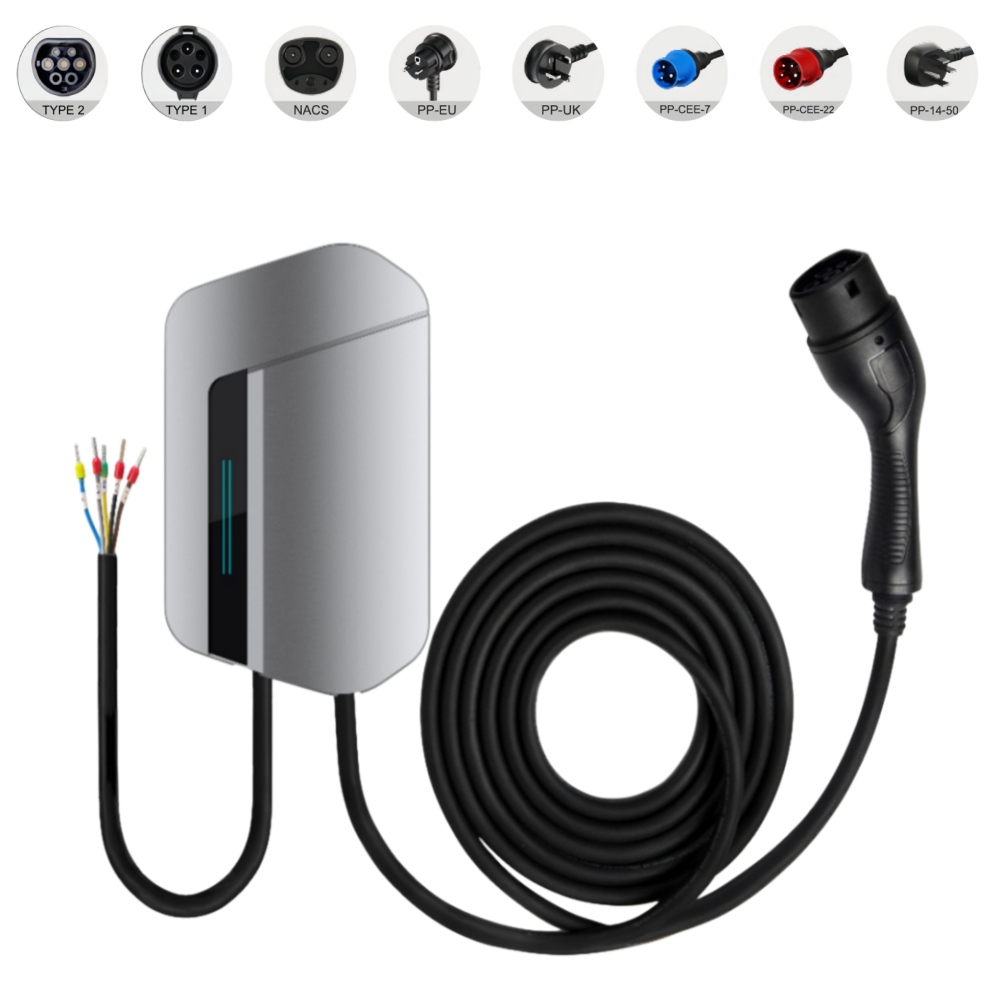

Charging Type	IEC 62196 Type 2 / European standard			SAE J1772 Type 1 / American Standard			SAE J3400 NACS / Tesla
Model No.	VCS-Z2-7	VCS-Z2-11	VCS-Z2-22	UCS-Z2-32	UCS-Z2-40	UCS-Z2-48	TCS-Z2-32	TCS-Z2-40	TCS-Z2-48
Rated voltage	AC 250V	AC 480V	AC 480V	AC 110-240V			AC 110-240V
Rated current	32A 1Phase	16A 3Phase	32A 3Phase	32A	40A	48A	32A	40A	48A
Rated power	7KW	11KW	22KW	7KW	9KW	11KW	7KW	9KW	11KW
Control box size	L265xW170xH80 (mm)
Start mode	Card swipe / APP / Plug & Play
Protection rank	IP65 / TYPE 6
Product features	Leakage protection:30mAAC+6mA DC/CCID20. Charging status and working error displayed by LED indicators.

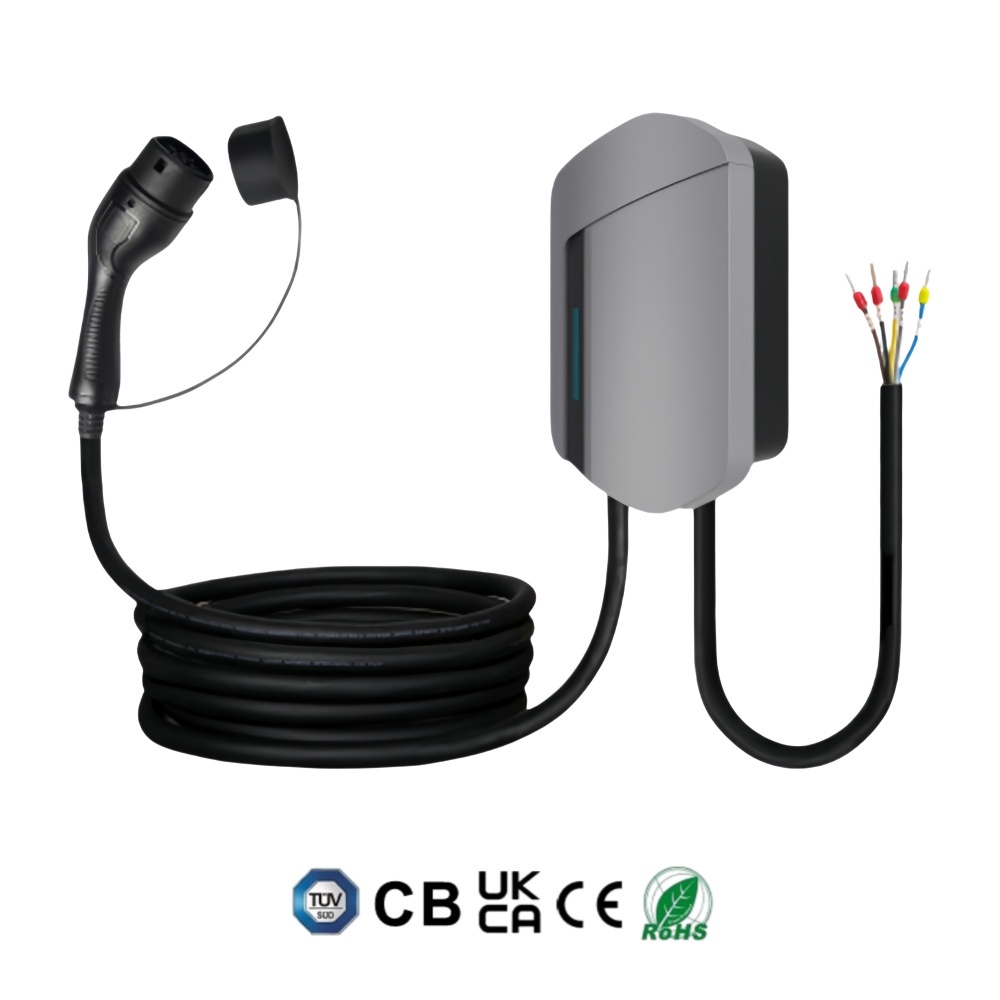

Product Certificates	TUV-Mark、CE、CB、RoHS					ETL、FCC、Energy Star、UL(Cable)

Product Advantages

Innovative Design and System Flexibility

Emphasizing modular construction, this product exhibits scalable integration options suitable for diverse installation scenarios encountered by wall charger suppliers and wallbox ev charger manufacturers. Its compact housing, composed of 100% pure PC material with impact resistance, supports wall mounted ev charger deployments that demand long-term durability and weather-proof certification at IP65. The customizable cable length and colors adapt to installation requirements and branding specifics, while the plug & play design simplifies field adjustments and reduces labor overhead in wall charger factory settings.

Enhanced Operational Efficiency and User Access

Featuring intuitive operational modes—including card swipe, app control, and straightforward plug & play activation—this home ev charger optimizes user interface simplicity and security. The device’s built-in LED status indicators provide clear diagnostics at a glance, facilitating troubleshooting and maintenance. Performance reliability, coupled with comprehensive safety protections, ensures minimal downtime and high availability. From the perspective of operation managers and technical teams, this ev wall charger supports efficient load balancing and real-time monitoring capabilities, promoting long-term cost control and improved end-user satisfaction.

Use Scenarios

Residential Multi-Car Charging Stations

In residential communities managing multiple EVs, the wall mounted ev charger serves as a controlled access point designed to support various vehicle types through universal connector compatibility. Its card swipe authentication feature ensures authorized usage while maintaining utility metering accuracy. The robust IP65 enclosure and cable durability accommodate outdoor, semi-exposed locations subject to weather variability. Integration with existing electrical infrastructure is straightforward, enabling building managers to upgrade charging capacity without significant retrofits, while maintaining compliance with safety and environmental standards expected by wall charger suppliers.

Commercial Fleet Charging and Management

For commercial fleet operators, this wallbox ev charger manufacturer delivers scalable charging solutions capable of simultaneous multi-station deployment with centralized control via app-based management systems. The product supports a range of rated power outputs and current levels, facilitating optimized charging schedules aligned with operational fleet cycles. Its safety parameters minimize electrical risks and ensure reliable service continuity under frequent use conditions. Systems incorporating this ev wall charger streamline fleet charging workflows and enhance energy consumption monitoring, crucial for meeting corporate sustainability goals and regulatory compliance mandates.

Product Testing
①	‌Water-proof testing	With waterproof seal design and meet IP55/IP65 standards. Can be used even in raining and snowing weather.
②	Vehicle run over testing	Test each charging cable for impedance resistance, high voltage, open / short.
③	Burn-in aging testing	High-voltage real usage testing for 6 hours for each charger.
④	ATE platform	Systematic testing for over / under voltage, Over / under current, CC/CP communication, RCD, leakage protect, grounding.

⑤	Temperature rise testing	Terminal temperature rise: <50K.
⑥	Comprehensive testing	Test each charging cable for impedance resistance, high voltage, open / short.
⑦	Automatic plug testing	Mechanical life: no load plug in / pull out >10000 times.
⑧	Tension testing	Coupled insertion force: >45N <80N.

⑨	Salt spray chamber	Mainly test the metal surface corrosion performance of connector.
⑩	Air-leakage detector	Test waterproof effect of the products.
⑪	Wire bending testing machine	The swing parts move left and right at an angle of 90°; cyclic bending to test the bending resistance of the jack and conductor of the cable.
⑫	Glow wire tester	Test the stability of electrical products, parts at high temperatures can not ignite or ignite other parts.

⑬	Constant temperature & humidity box	Simulated outdoor environment: high temperature, low temperature and humidity staggered cycletest to verify the service life of the product in different environments.
⑭	Tracking test Apparatus	Detect the failure of the insulating material itself or the insulating function caused by the conductive substances deposited on the surface.

⑮	Adhesion tester	Test adhesion power or detaching force of the PC plate on the product.
⑯	RCD tester	Test leakage respond speed and leakage respond value of leakage protection designed in the charger.

⑰	Swing box tester	To simulate in the process of product packaging and transportation whether the product is damaged, scratched, or the inner box is damaged during transportation.
⑱	Wire flexure testing machine	Use to test the bending resistance of wire.

⑲	Aging test	The specimen is subjected to 136°C for 168 hours. Heat aging resistance is assessed by the change in tensile strength before and after aging (≤30%).
⑳	Oil resistance aging test	The European standard wire is tested at 100±2°C for 168 hours, while the American standard wire is tested at 60±2°C for 168 hours, to inspect the specimen for any damage.

㉑	Digital measuring projector	Measuring wire jacket / insulation thickness and eccentricity.
㉒	Core wire withstand voltage test	A set high voltage is applied to rigorously test the insulation strength of the wire, ensuring that the product will not suffer breakdown or electric leakage during use.

FAQ

Can I customize the cable length and color of the Wall EV Charger?
Yes, we offer customization for both the cable length and color to suit your specific installation requirements. Our wall charger factory supports flexible options ensuring your charger fits perfectly in your application and aesthetic preferences.

What safety features does your Wall EV Charger include?
Our Wall EV Charger is equipped with multiple protection mechanisms including leakage current, overcurrent, surge, voltage, temperature, and ground protection. These comply with international certifications, guaranteeing safe and reliable operation for your wallbox ev charger installation.

How do I install the Wall EV Charger for commercial use?
The Wall EV Charger supports single or three-phase systems and comes with plug & play functionality for quick setup. Its IP65-rated, weatherproof casing allows safe outdoor mounting, making it ideal for commercial premises requiring durable ev wall charger solutions.

What is your typical lead time for orders of the Wall EV Charger?
Sample orders usually ship within 3–5 days. For larger volume orders, production time ranges from 10–35 days depending on order size and custom specifications. As a professional wall charger supplier, we ensure timely delivery and clear communication throughout the process.
