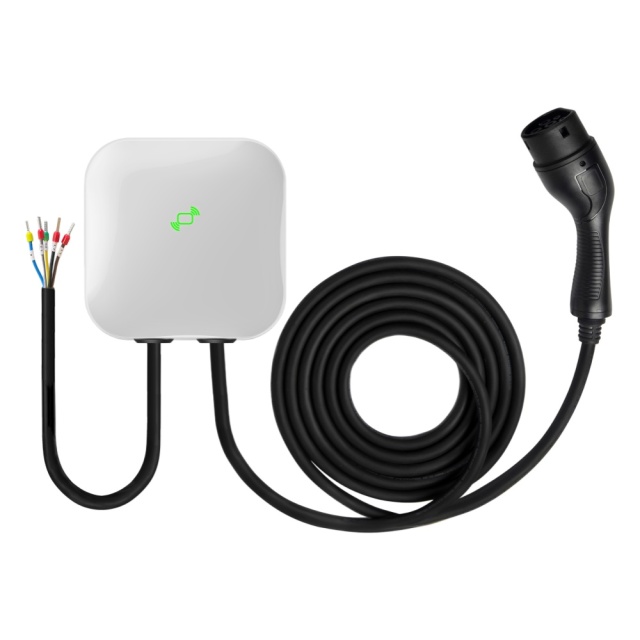

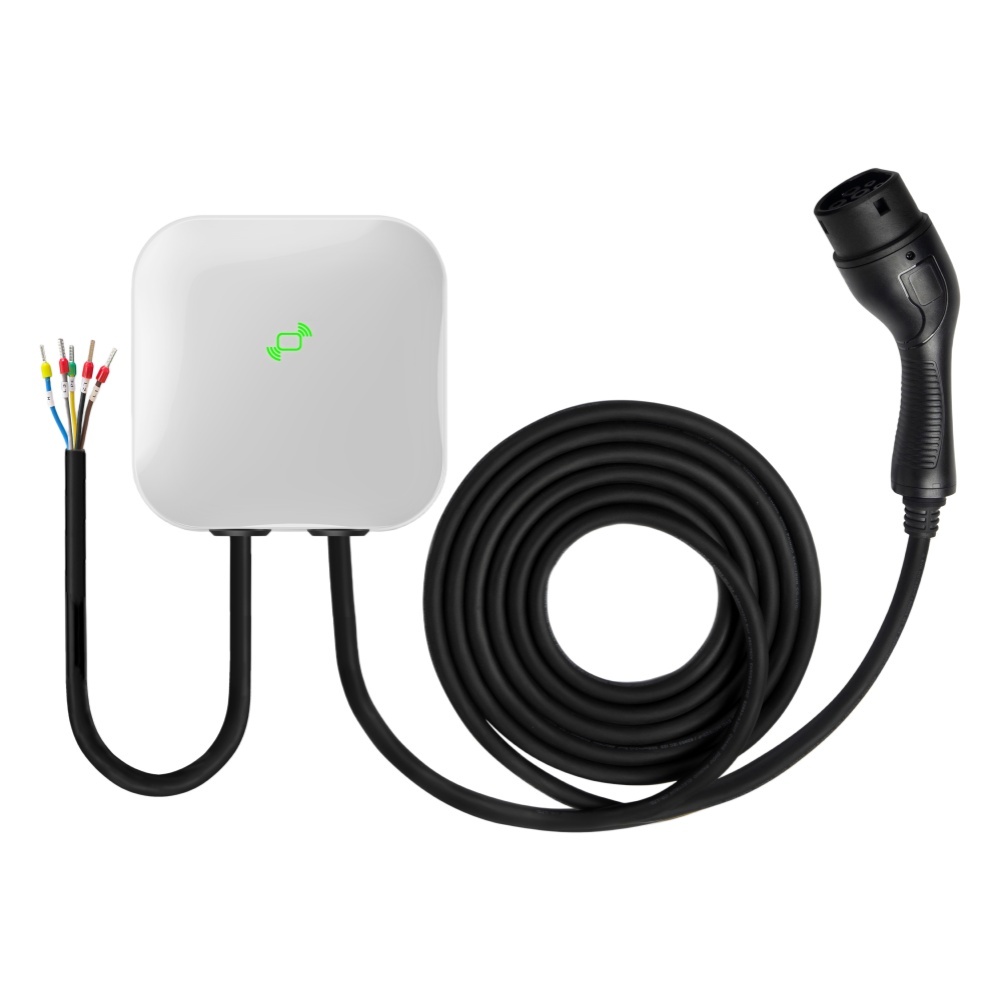

| Specification | • Wall EV Charger, CE(EN61851), UKCA, RoHS, TUV, CB, FCC, ETL(UL2594), Energy Star. • EV charging cable TPU jacket (CE EN62196 / TUV certified). • Indicator Light to show work situation(R/G/B); Shells 100% pure PC. • Leakage protection: Type B(RCD 30mA AC+6mA DC) ; MCU chipset from ST. • IP65, Weather proof; Leakage current protection; Impact resistance, Over current protection, Ground protection, Surge protection, O/U voltage protection, O/U frequency protection, Over temp protection. • Power cord open, ready to assemble into electricity / or with power plug. • Start mode: card swipe / plug & play / App control. |
||||||||

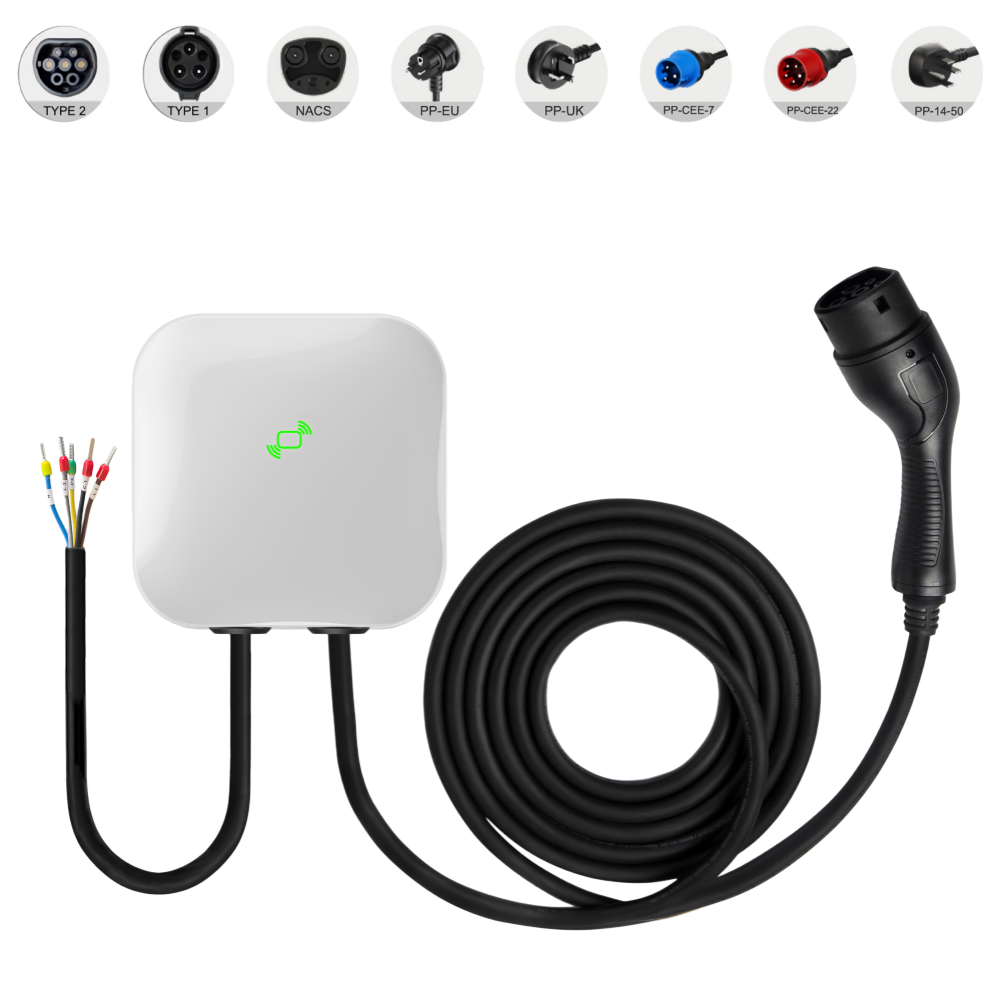

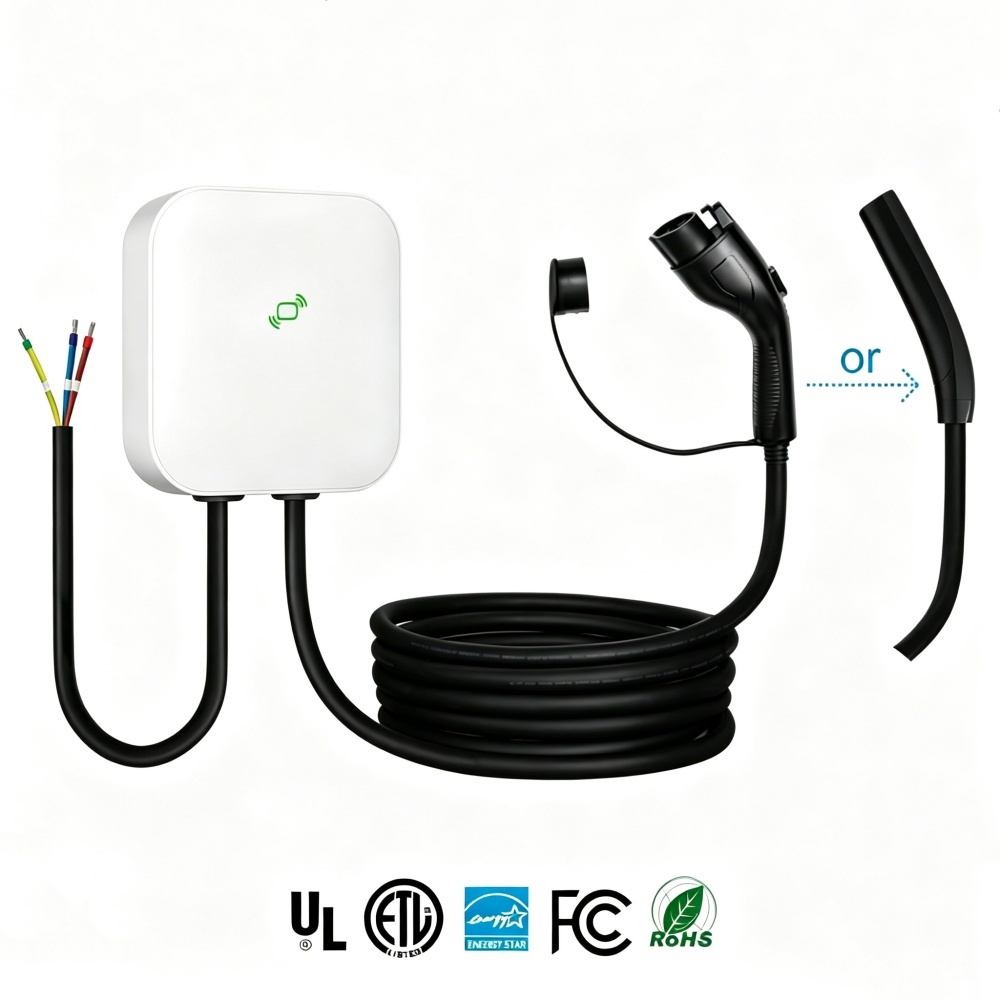

| Charging Type | IEC 62196 Type 2 / European standard | SAE J1772 Type 1 / American Standard | SAE J3400 NACS / Tesla | ||||||
| Model No. |
VCS-MB-7
|
VCS-MB-11 | VCS-MB-22 | UCS-MB-32 | UCS-MB-40 | UCS-MB-48 | TCS-MB-32 | TCS-MB-40 | TCS-MB-48 |
| Rated voltage | AC 250V | AC 480V | AC 480V | AC 110-240V | AC 110-240V | ||||
| Rated current | 32A 1Phase |
16A 3Phase |
32A 3Phase |

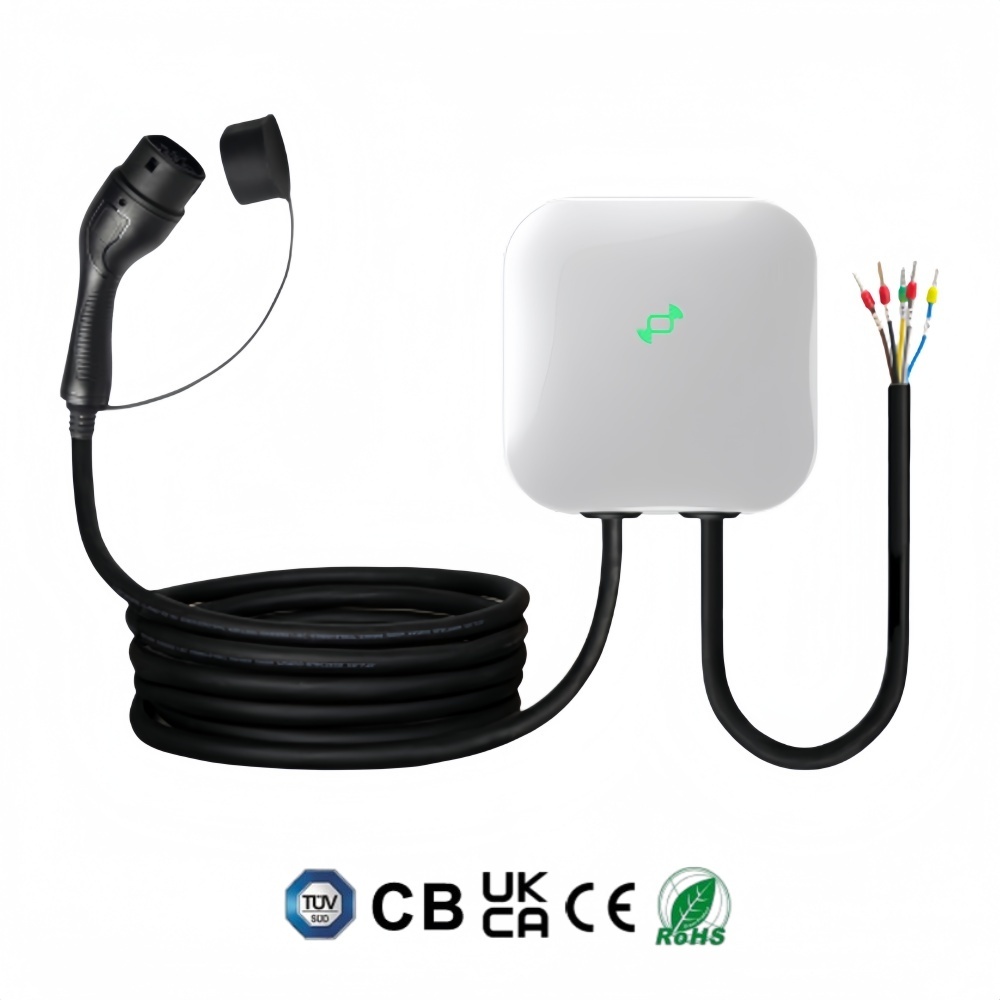

32A | 40A | 48A | 32A | 40A | 48A |
| Rated power | 7KW | 11KW | 22KW | 7KW | 9KW | 11KW | 7KW | 9KW | 11KW |
| Control box size | L180xW85xH180(mm) | ||||||||
| Start mode | Card swipe / APP / Plug & Play | ||||||||
| Protection rank | IP65/TYPE 6 | ||||||||
| Product features | Leakage protection:30mAAC+6mA DC/CCID20. Charging status and working error displayed by LED indicators. |
||||||||
| Product Certificates | TUV-Mark、CE、CB、RoHS | ETL、FCC、Energy Star、UL(Cable) | |||||||
| Product Testing | ||
| ① | Water-proof testing | With waterproof seal design and meet IP55/IP65 standards. Can be used even in raining and snowing weather. |
| ② | Vehicle run over testing | Test each charging cable for impedance resistance, high voltage, open / short. |
| ③ | Burn-in aging testing | High-voltage real usage testing for 6 hours for each charger. |
| ④ | ATE platform | Systematic testing for over / under voltage, Over / under current, CC/CP communication, RCD, leakage protect, grounding. |
 |
||
| ⑤ | Temperature rise testing | Terminal temperature rise: <50K. |
| ⑥ | Comprehensive testing | Test each charging cable for impedance resistance, high voltage, open / short. |
| ⑦ | Automatic plug testing | Mechanical life: no load plug in / pull out >10000 times. |
| ⑧ | Tension testing | Coupled insertion force: >45N <80N. |
 |
||
| ⑨ | Salt spray chamber | Mainly test the metal surface corrosion performance of connector. |
| ⑩ | Air-leakage detector | Test waterproof effect of the products. |
| ⑪ | Wire bending testing machine | The swing parts move left and right at an angle of 90°; cyclic bending to test the bending resistance of the jack and conductor of the cable. |
| ⑫ | Glow wire tester | Test the stability of electrical products, parts at high temperatures can not ignite or ignite other parts. |
 |
||
| ⑬ | Constant temperature & humidity box | Simulated outdoor environment: high temperature, low temperature and humidity staggered cycletest to verify the service life of the product in different environments. |
| ⑭ | Tracking test Apparatus | Detect the failure of the insulating material itself or the insulating function caused by the conductive substances deposited on the surface. |
 |
||
| ⑮ | Adhesion tester | Test adhesion power or detaching force of the PC plate on the product. |
| ⑯ | RCD tester | Test leakage respond speed and leakage respond value of leakage protection designed in the charger. |
 |
||
| ⑰ | Swing box tester | To simulate in the process of product packaging and transportation whether the product is damaged, scratched, or the inner box is damaged during transportation. |
| ⑱ | Wire flexure testing machine | Use to test the bending resistance of wire. |
 |
||
| ⑲ | Aging test | The specimen is subjected to 136°C for 168 hours. Heat aging resistance is assessed by the change in tensile strength before and after aging (≤30%). |
| ⑳ | Oil resistance aging test | The European standard wire is tested at 100±2°C for 168 hours, while the American standard wire is tested at 60±2°C for 168 hours, to inspect the specimen for any damage. |
 |
||
| ㉑ | Digital measuring projector | Measuring wire jacket / insulation thickness and eccentricity. |
| ㉒ | Core wire withstand voltage test | A set high voltage is applied to rigorously test the insulation strength of the wire, ensuring that the product will not suffer breakdown or electric leakage during use. |
 |
||
