NACS Tesla EV Charging Cable Open End Bare Wire | 3.5kW-15kW

Product Overview

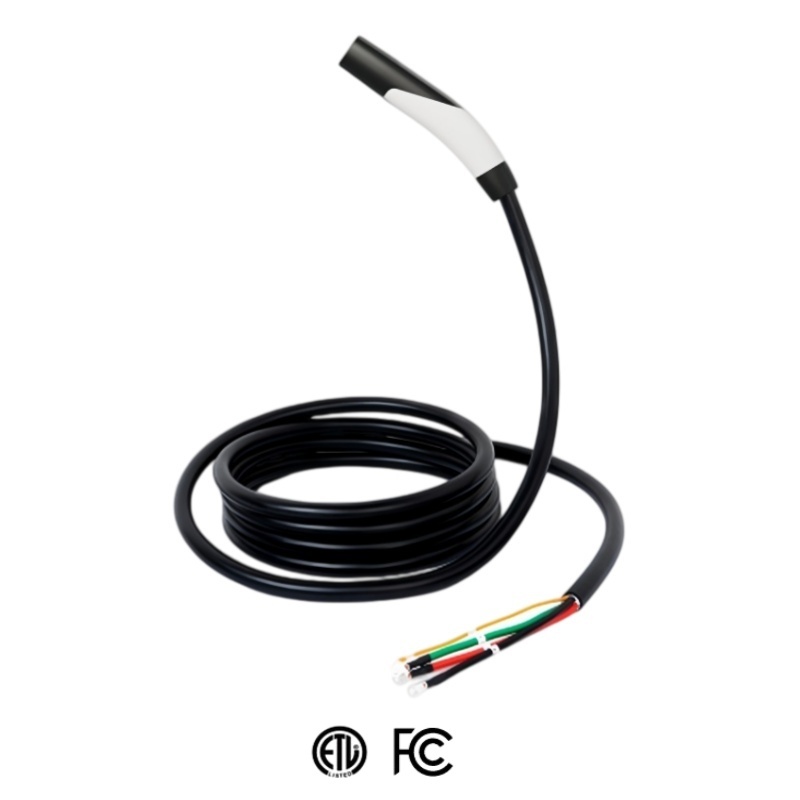

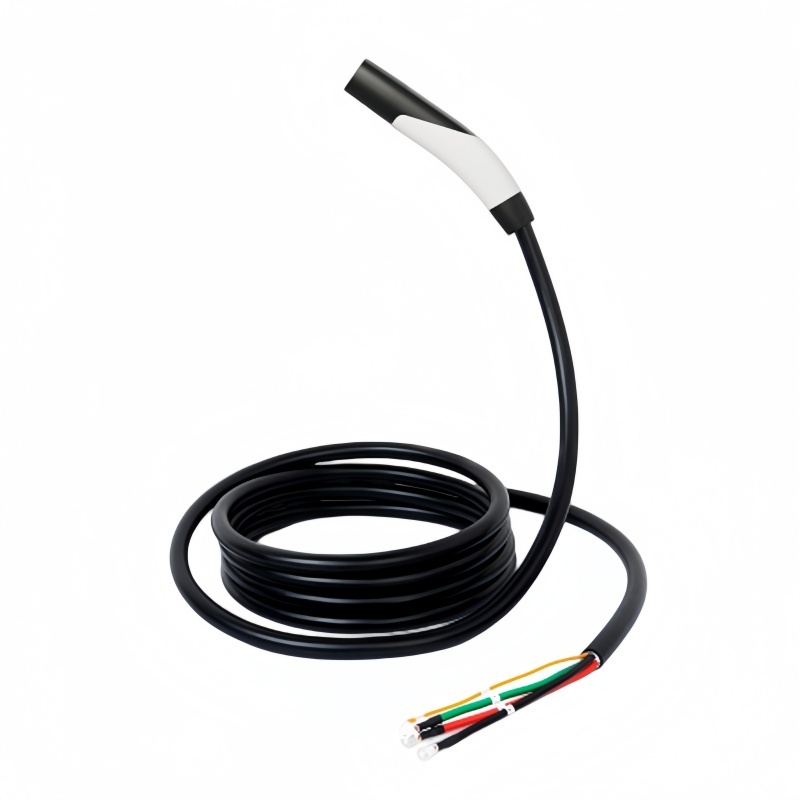

This NACS open‑end charging cable features a standard NACS connector at one end and pre‑stripped bare‑wire terminals at the opposite end. Certified with ETL safety and FCC electromagnetic compatibility standards, this cable is engineered as a core component for EV charging equipment manufacturers, system integrators and maintenance service providers.

Instead of a complete ready‑to‑use charger unit, it is a high‑quality gun‑cable assembly for integration into your own EVSE host. Built with heavy‑duty TPU outer jacket, it withstands outdoor UV exposure, wide temperature fluctuations and repeated bending for long‑term commercial and residential operation. Cable length and conductor gauge can be customized to satisfy different AC charging power requirements.

Key Features

✅ Standard NACS Interface
Original‑compatible NACS connector for North American EVSE systems. Ergonomic curved‑handle design reduces fatigue during frequent plug‑in & unplug operations, robust anti‑impact housing for heavy‑duty daily usage.

✅ Open Bare‑Wire Terminals for Easy Integration
One‑end stripped bare wire design. No extra gun housing disassembly required. Technicians can directly connect wires to internal terminals of charging station hosts, ideal for new‑unit assembly, on‑site retrofitting and damaged‑cable replacement.

✅ ETL Safety & FCC EMC Certification
Compliant with North American market access requirements. ETL safety certification guarantees electrical safety; FCC certification ensures low electromagnetic interference, helping your finished products pass local regulatory audits.

✅ Weather‑Resistant Heavy‑Duty Cable
Premium TPU cable sheath delivers excellent resistance against abrasion, UV ray, cold‑hot cycling and outdoor aging. High flexibility prevents crack from thousands of bending cycles for all‑weather installation.

✅ High‑Performance Copper Conductor
High‑purity copper inner conductors minimize electrical resistance and heat buildup during continuous charging, delivering stable power transmission and extending service life of the whole charging system.

✅ Flexible Customization Available
Support custom cable length and conductor cross‑section gauge to match different AC power ratings. OEM service is available for bulk project orders.

Application Scenarios

1. New EV Charging Station Manufacturing
Used as factory‑fitted cable component for assembling brand‑new residential and commercial NACS AC charging stations.

2. Damaged Cable Replacement & After‑sales Repair
Direct replacement solution for worn, cracked or broken gun‑cable assemblies on installed NACS charging equipment.

3. Charging Equipment Retrofit & Upgrade Projects
Retrofit legacy charging hardware to support NACS‑standard output for property, parking lot and commercial‑park renovation projects.

4. OEM & ODM Custom EV Charger Development
For solution integrators building private‑label NACS EV chargers for distribution.

5. Factory Production Test Benches & Laboratory Evaluation
Applied on EVSE production lines and test labs for performance testing of NACS charging devices.

Target Industries & Customers

· EV charging equipment manufacturers (residential & commercial AC charger production)
· EV charging solution integrators & OEM / ODM service providers
· North America‑focused EV charger importers, wholesalers and distributors
· Charging station maintenance & after‑sales service contractors
· New energy test laboratories and certification institutions
· Real-estate, property management and commercial‑park engineering contractors

Important Purchase Notes
 > Please read carefully before placing orders

1. This is a semi‑finished cable assembly ONLY
This product contains only NACS gun and cable with bare wires. Controller board, relay and full charger host are NOT included. It **cannot work by direct connection to mains power**. It must be wired to a compliant EVSE charging host unit.

2. Parameter confirmation before ordering
Please confirm required cable length and conductor gauge according to your charging power rating. Different current‑rated cables cannot be mixed in application.

3. Professional installation required
Bare‑wire terminals shall be wired by qualified electricians. Improper wiring may lead to equipment failure and safety hazards.

4. Market compliance reminder
ETL and FCC certifications are targeted for North‑American market. Please verify local regulatory requirements if exporting to other regions.

5. Lead‑time for custom orders
Custom‑length or special‑spec bulk orders require dedicated production lead‑time. Sample lead‑time differs from mass‑production orders. Please confirm lead‑time with sales in advance.

6. Warranty scope
Warranty covers manufacturing defects of cable and connector only. Damage caused by wrong wiring, violent mechanical impact, unauthorized modification and improper outdoor operation are excluded from warranty coverage.

Product Testing
①	‌Water-proof testing	With waterproof seal design and meet IP55/IP65 standards. Can be used even in raining and snowing weather.
②	Vehicle run over testing	Test each charging cable for impedance resistance, high voltage, open / short.
③	Burn-in aging testing	High-voltage real usage testing for 6 hours for each charger.
④	ATE platform	Systematic testing for over / under voltage, Over / under current, CC/CP communication, RCD, leakage protect, grounding.
⑤	Temperature rise testing	Terminal temperature rise: <50K.
⑥	Comprehensive testing	Test each charging cable for impedance resistance, high voltage, open / short.
⑦	Automatic plug testing	Mechanical life: no load plug in / pull out >10000 times.
⑧	Tension testing	Coupled insertion force: >45N <80N.
⑨	Salt spray chamber	Mainly test the metal surface corrosion performance of connector.
⑩	Air-leakage detector	Test waterproof effect of the products.
⑪	Wire bending testing machine	The swing parts move left and right at an angle of 90°; cyclic bending to test the bending resistance of the jack and conductor of the cable.
⑫	Glow wire tester	Test the stability of electrical products, parts at high temperatures can not ignite or ignite other parts.
⑬	Constant temperature & humidity box	Simulated outdoor environment: high temperature, low temperature and humidity staggered cycletest to verify the service life of the product in different environments.
⑭	Tracking test Apparatus	Detect the failure of the insulating material itself or the insulating function caused by the conductive substances deposited on the surface.
⑮	Adhesion tester	Test adhesion power or detaching force of the PC plate on the product.
⑯	RCD tester	Test leakage respond speed and leakage respond value of leakage protection designed in the charger.
⑰	Swing box tester	To simulate in the process of product packaging and transportation whether the product is damaged, scratched, or the inner box is damaged during transportation.
⑱	Wire flexure testing machine	Use to test the bending resistance of wire.
⑲	Aging test	The specimen is subjected to 136°C for 168 hours. Heat aging resistance is assessed by the change in tensile strength before and after aging (≤30%).
⑳	Oil resistance aging test	The European standard wire is tested at 100±2°C for 168 hours, while the American standard wire is tested at 60±2°C for 168 hours, to inspect the specimen for any damage.
㉑	Digital measuring projector	Measuring wire jacket / insulation thickness and eccentricity.
㉒	Core wire withstand voltage test	A set high voltage is applied to rigorously test the insulation strength of the wire, ensuring that the product will not suffer breakdown or electric leakage during use.

FAQ

What customization options do you offer for the SAE J3400 NACS Tesla Plug-Open EV Charging Cable?
We provide OEM customization including various cable lengths, color schemes, and logo printing to meet your branding requirements. Our flexible options ensure the custom nacs charging cable fits your specific project needs, enhancing the product's alignment with your business identity.

Are your SAE J3400 charging cables suitable for heavy-duty outdoor use?
Yes, all our SAE J3400 charging cables feature a TPE jacket and comply with IP55/IP65 waterproof and dustproof standards, ensuring durability and reliable performance in harsh outdoor environments. They are designed for long-term use in commercial and residential charging setups.

What certifications and testing ensure the reliability of your NACS charging cables?
Our cables hold ETL and FCC certifications and undergo rigorous mechanical, electrical, and environmental tests, including vehicle run-over, burn-in aging, and high-voltage stress testing. This commitment guarantees safety and longevity in our nacs charging cable manufacturer product line.

How do you handle logistics and support for bulk orders of your EV charger cables?
We coordinate efficient production and shipping schedules to accommodate business clients’ volume demands. Our team supports you through the ordering process to ensure timely delivery and after-sales service for your ev charger cable requirements.
