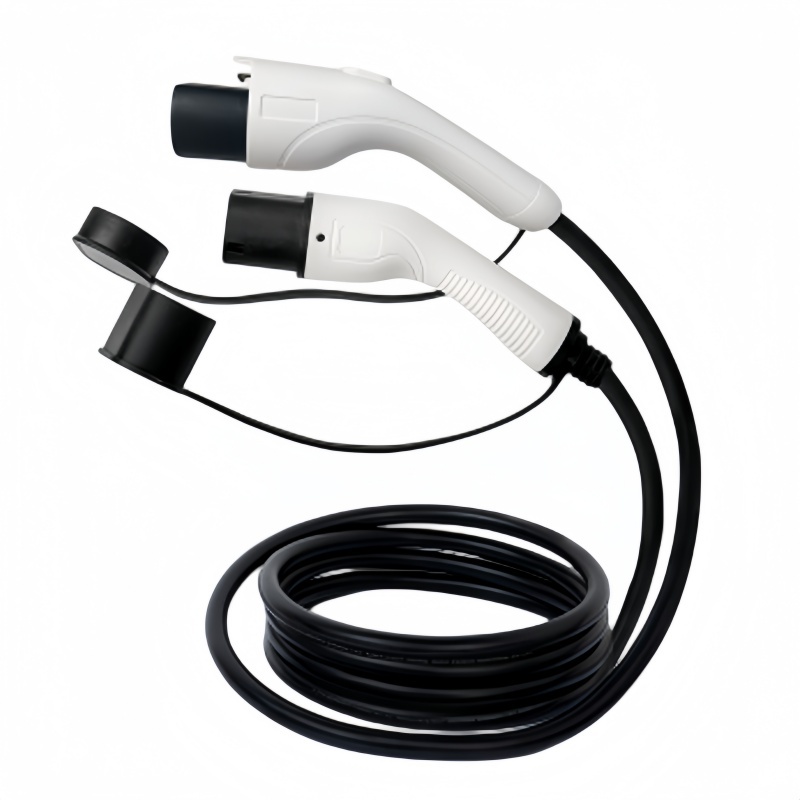

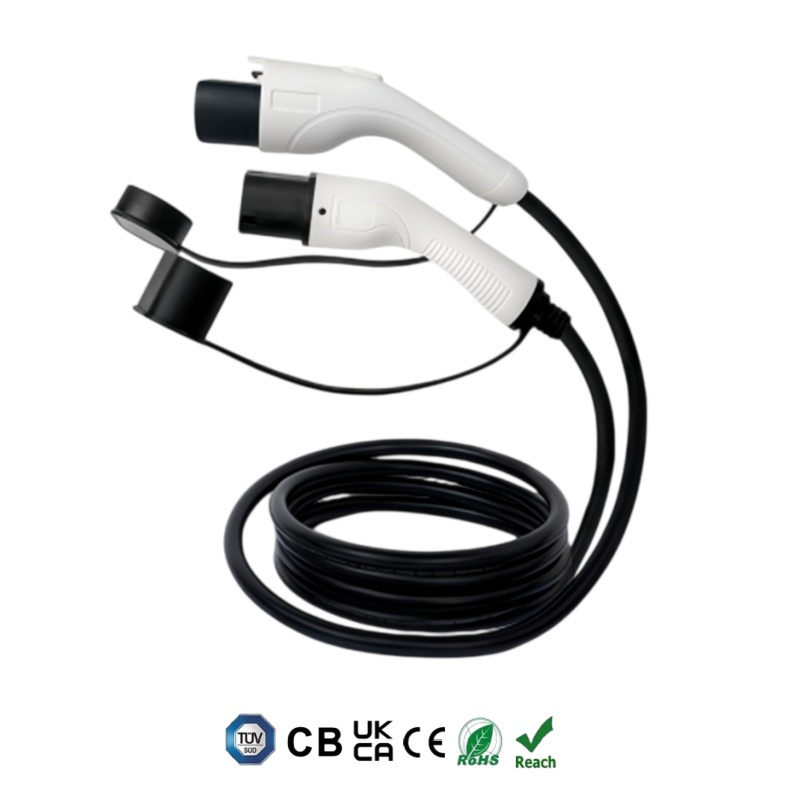

IEC 621961 Type 2 to GBT 20234.2-2015 EV Charging Cable | 3.5kW-22kW

No.V1-G1
Specification & Technical:
• Dust proof cap made by silicon, attached on tail.
• Certs: CE(TUV), TUV-mark, RoHS, Reach, CB.
• TPU jacket for lifetime protection.
• Model No. and cable specification
V1-16S-G1: 1 phase, 16A, 250V, 3.5kW
V1-32S-G1: 1 phase, 32A, 250V, 7kW
V1-16T-G1: 3 phase, 16A, 480V, 11kW
V1-32T-G1: 3 phase, 32A, 480V, 22kW
• Regular length: 5M / 7M / 10M.

Connect your Chinese GB/T EV to European Type 2 charging stations.
Our Type 2 to GB/T EV charging cable supports 16-32A, 3.5kW-22kW AC charging. Fully TUV CE UKCA certified, wear-resistant & weather-proof. Custom lengths & OEM service available.

Download
View all downloads
  • IEC621961 Type 2 to GBT 20234.2-2015 EV Charging Cable | 3.5kW-22kW,ShinCharge | EV Charging Products OEM & ODM Manufacturing | EV Charging Expert.,Type 2 to GB/T EV Charging Cable 32A 22kW | IEC to Chinese GBT Charger Lead
  • IEC621961 Type 2 to GBT 20234.2-2015 EV Charging Cable | 3.5kW-22kW,ShinCharge | EV Charging Products OEM & ODM Manufacturing | EV Charging Expert.,Type 2 to GB/T EV Charging Cable 32A 22kW | IEC to Chinese GBT Charger Lead
  • Type 2 to Type 2 IEC62196 EV Charging Spiral Cable,ShinCharge | Electric Vehicle Charging Products OEM & ODM Manufacturing | EV Charging Cable | Portable EV Charger | Wall-mounted EV Charger | EV Charging Station,EV Charging cable, IEC 62196 type 2 to type 2

Description


Executive standard
IEC 62196 Type 2 / GBT 20234.2-2015
Model No.
V1-16S-G1
V1-32S-G1
V1-16T-G1
V1-32T-G1
Rated voltage
AC 250V
AC 480V
Rated current
16A / 1Phase
32A / 1Phase
16A / 3Phase
32A / 3Phase
Rated power
3.5KW
7KW
11KW
22KW
Protection rank
IP65
Product features
Excellent waterproof and dustproof performance.
Product Certificates
TUV-Mark, CB, CE, RoHS, UKCA, REACH

Product Testing
① ‌Water-proof testing With waterproof seal design and meet IP55/IP65 standards. Can be used even in raining and snowing weather.
② Vehicle run over testing Test each charging cable for impedance resistance, high voltage, open / short.
③ Burn-in aging testing High-voltage real usage testing for 6 hours for each charger.
④ ATE platform Systematic testing for over / under voltage, Over / under current, CC/CP communication, RCD, leakage protect, grounding.
⑤ Temperature rise testing Terminal temperature rise: <50K.
⑥ Comprehensive testing Test each charging cable for impedance resistance, high voltage, open / short.
⑦ Automatic plug testing Mechanical life: no load plug in / pull out >10000 times.
⑧ Tension testing Coupled insertion force: >45N <80N.
⑨ Salt spray chamber Mainly test the metal surface corrosion performance of connector.
⑩ Air-leakage detector Test waterproof effect of the products.
⑪ Wire bending testing machine The swing parts move left and right at an angle of 90°; cyclic bending to test the bending resistance of the jack and conductor of the cable.
⑫ Glow wire tester Test the stability of electrical products, parts at high temperatures can not ignite or ignite other parts.

⑬ Constant temperature & humidity box Simulated outdoor environment: high temperature, low temperature and humidity staggered cycletest to verify the service life of the product in different environments.
⑭ Tracking test Apparatus Detect the failure of the insulating material itself or the insulating function caused by the conductive substances deposited on the surface.

⑮ Adhesion tester Test adhesion power or detaching force of the PC plate on the product.
⑯ RCD tester Test leakage respond speed and leakage respond value of leakage protection designed in the charger.
⑰ Swing box tester To simulate in the process of product packaging and transportation whether the product is damaged, scratched, or the inner box is damaged during transportation.
⑱ Wire flexure testing machine Use to test the bending resistance of wire.

⑲ Aging test The specimen is subjected to 136°C for 168 hours. Heat aging resistance is assessed by the change in tensile strength before and after aging (≤30%).
⑳ Oil resistance aging test The European standard wire is tested at 100±2°C for 168 hours, while the American standard wire is tested at 60±2°C for 168 hours, to inspect the specimen for any damage.

㉑ Digital measuring projector Measuring wire jacket / insulation thickness and eccentricity.
㉒ Core wire withstand voltage test A set high voltage is applied to rigorously test the insulation strength of the wire, ensuring that the product will not suffer breakdown or electric leakage during use.
