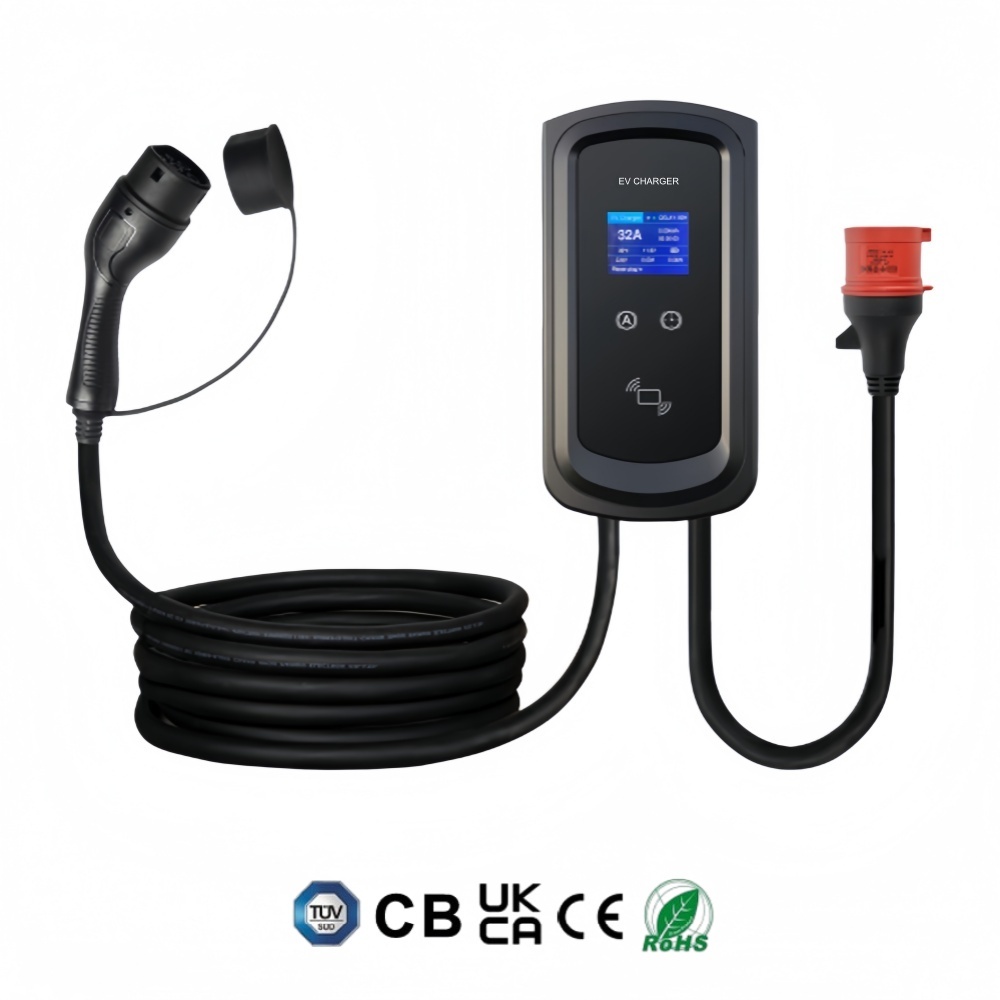

Specification
|
• EV Charging station, CE(UDEM), UKCA, RoHS.

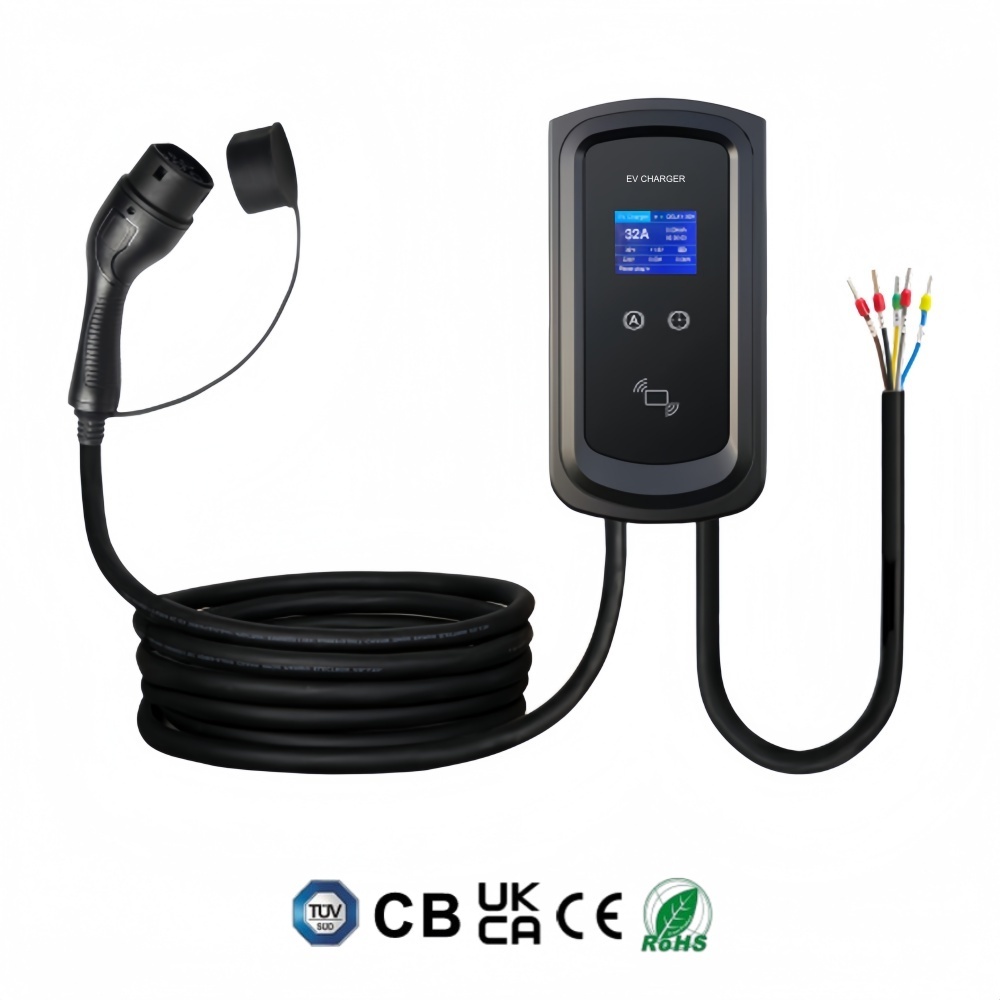

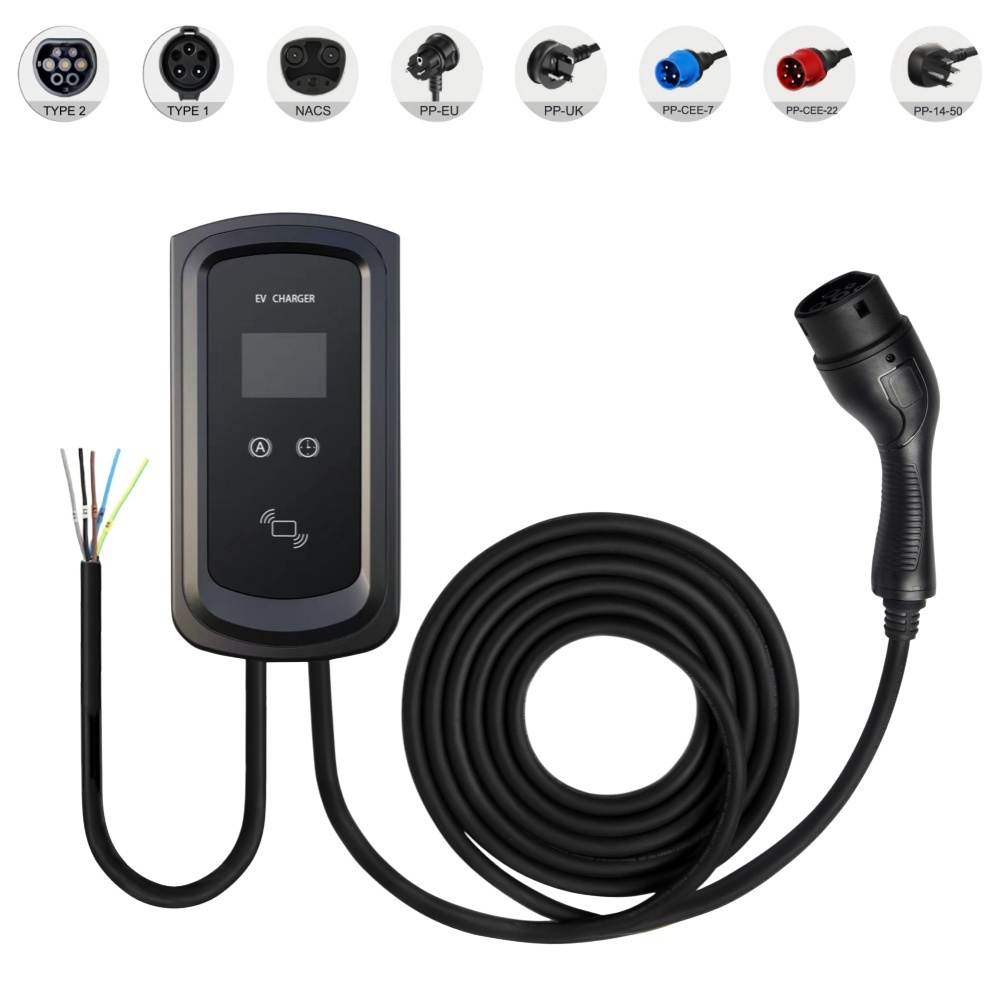

• EV charging cable TPU jacket (CE/TUV certified). • 2.8'' LCD screen; with Current switch & time book button. • RCD protection: type A 30mA AC. • IP65, Weather proof; Leakage current protection; Impact resistance, Over current protection, Ground protection, Surge protection, O/U voltage protection, O/U frequency protection, Over temp protection. • Power cord open, ready to assemble into electricity. • Start mode: card swipe. • Accessory: hanging plate; screws; swipe card. |
|||
|
Executive standard
|
IEC62196 Type 2 / European standard
|
|||
|
Model No.
|
VCS-13-7S
|
VCS-13-11S
|
VCS-13-22S
|
|
|
Rated voltage
|
AC 200-250V
|
AC 380-480V
|
||
|
Rated current
|
32A
|
16A
|
32A
|
|
|
Rated power
|
7KW
|
11KW
|
22KW
|
|
|
Control box size
|
L245xW100xH50(mm)
|
|||
|
Protection rank
|
IP65
|
|||
|
Product features
|
Leakage protection:30mAAC+6mA DC/CCID20.
2.8"LCD color screen. Current switch; Time delay. LOGO could be set to shinning by the indicator light. |
|||
|
Product Certificates
|
TUV-Mark、CB、CE、RoHS、UKCA
|
|||
| Product Testing | ||
| ① | Water-proof testing | With waterproof seal design and meet IP55/IP65 standards. Can be used even in raining and snowing weather. |
| ② | Vehicle run over testing | Test each charging cable for impedance resistance, high voltage, open / short. |
| ③ | Burn-in aging testing | High-voltage real usage testing for 6 hours for each charger. |
| ④ | ATE platform | Systematic testing for over / under voltage, Over / under current, CC/CP communication, RCD, leakage protect, grounding. |
 |
||
| ⑤ | Temperature rise testing | Terminal temperature rise: <50K. |
| ⑥ | Comprehensive testing | Test each charging cable for impedance resistance, high voltage, open / short. |
| ⑦ | Automatic plug testing | Mechanical life: no load plug in / pull out >10000 times. |
| ⑧ | Tension testing | Coupled insertion force: >45N <80N. |
 |
||
| ⑨ | Salt spray chamber | Mainly test the metal surface corrosion performance of connector. |
| ⑩ | Air-leakage detector | Test waterproof effect of the products. |
| ⑪ | Wire bending testing machine | The swing parts move left and right at an angle of 90°; cyclic bending to test the bending resistance of the jack and conductor of the cable. |
| ⑫ | Glow wire tester | Test the stability of electrical products, parts at high temperatures can not ignite or ignite other parts. |
 |
||
| ⑬ | Constant temperature & humidity box | Simulated outdoor environment: high temperature, low temperature and humidity staggered cycletest to verify the service life of the product in different environments. |
| ⑭ | Tracking test Apparatus | Detect the failure of the insulating material itself or the insulating function caused by the conductive substances deposited on the surface. |
 |
||
| ⑮ | Adhesion tester | Test adhesion power or detaching force of the PC plate on the product. |
| ⑯ | RCD tester | Test leakage respond speed and leakage respond value of leakage protection designed in the charger. |
 |
||
| ⑰ | Swing box tester | To simulate in the process of product packaging and transportation whether the product is damaged, scratched, or the inner box is damaged during transportation. |
| ⑱ | Wire flexure testing machine | Use to test the bending resistance of wire. |
 |
||
| ⑲ | Aging test | The specimen is subjected to 136°C for 168 hours. Heat aging resistance is assessed by the change in tensile strength before and after aging (≤30%). |
| ⑳ | Oil resistance aging test | The European standard wire is tested at 100±2°C for 168 hours, while the American standard wire is tested at 60±2°C for 168 hours, to inspect the specimen for any damage. |
 |
||
| ㉑ | Digital measuring projector | Measuring wire jacket / insulation thickness and eccentricity. |
| ㉒ | Core wire withstand voltage test | A set high voltage is applied to rigorously test the insulation strength of the wire, ensuring that the product will not suffer breakdown or electric leakage during use. |
 |
||
