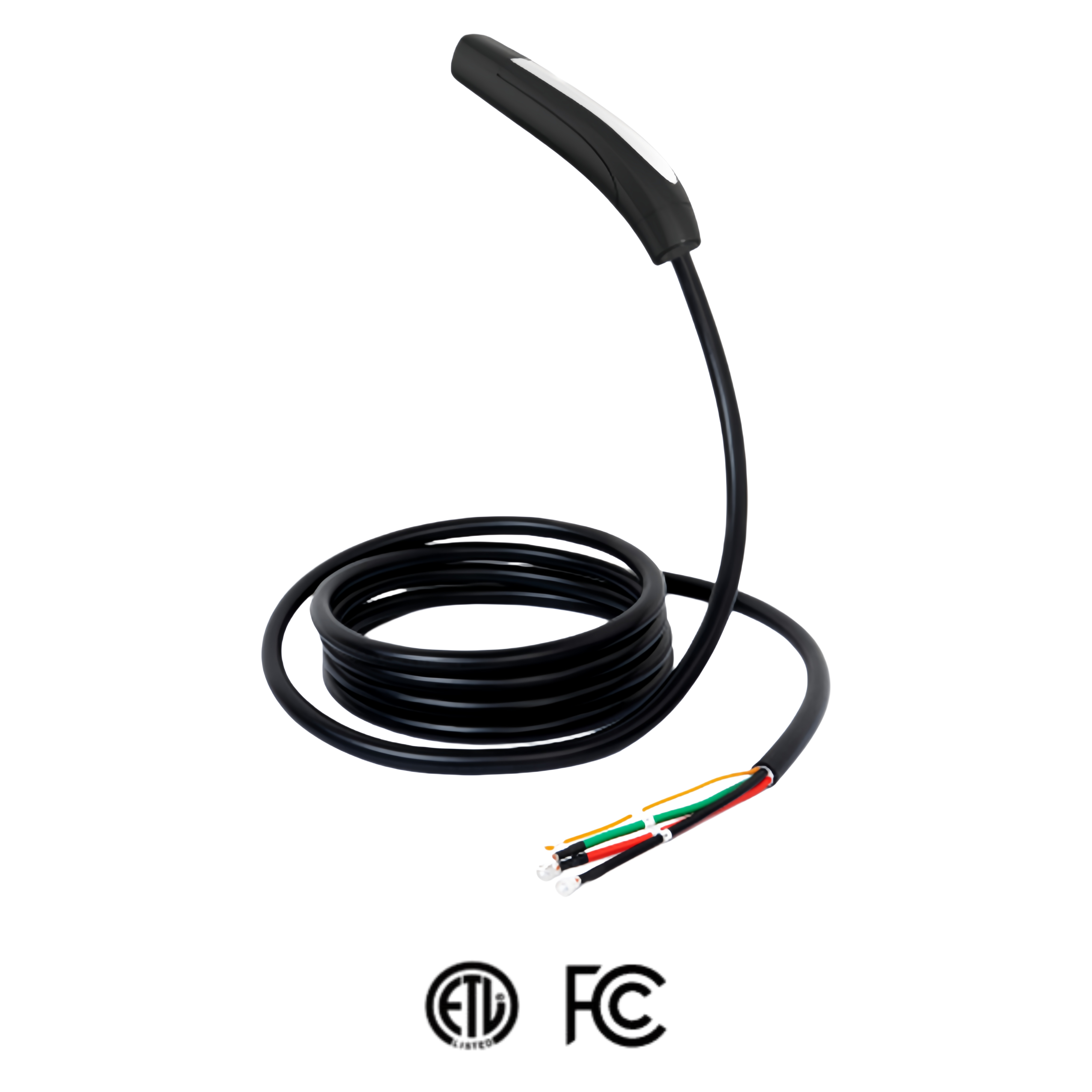

SAE J3400 NACS Tesla Plug-Open EV Charging Cable | 3.5KW 7KW 9KW 11KW

Product Description

Functional Focus on Tesla-Compatible Charging Networks

This product serves as a precision-engineered solution for electric vehicle charging infrastructure providers and fleet operators requiring Tesla-compatible equipment. As a specialized offering from a leading nacs charging cable manufacturer, it targets commercial installations and advanced residential settings where adherence to Tesla’s NACS interface standards is critical. The cable facilitates streamlined user interaction by incorporating a zinc alloy button to open vehicle ports, minimizing operational complexities. Its design supports multiple current ratings, ensuring compatibility across diverse Tesla vehicle models and enhancing deployment flexibility for engineers and procurement teams.

Technical Specifications and Material Durability

Designed to address rigorous electrical demands, this sae j3400 charging cable features voltage operation of 110-240V AC with power options spanning from 3.5KW to 11KW, correlating with current models from 16A to 48A. The cable is constructed with a high-grade TPE jacket delivering mechanical endurance and environmental protection, meeting IP55/IP65 waterproof and dustproof standards. Its integrated thermal sensor provides real-time temperature monitoring to mitigate overheating risks during prolonged charging cycles. Certification through ETL and FCC ensures compliance with electrical safety and electromagnetic compatibility requirements, confirming reliability in both indoor and outdoor industrial applications.

Industry Application and Operational Reliability

The cable is suited for integration into commercial charging stations, corporate Tesla fleets, and OEM-customized charging solutions. By supplying a dependable connection that adheres strictly to Tesla’s NACS protocol, it supports continuous operation under demanding conditions such as public parking facilities and workplace charging bays. Customizable features including length, color, and branding enable tailored deployments aligning with client specifications. This sae j3400 cable supplier’s product enhances infrastructure scalability while maintaining seamless system compatibility that supports future smart charging integrations and grid management strategies.

Product Advantages

Structural and Design Integrity

Developed by a top-tier nacs charging cable manufacturer, the design prioritizes modularity and system adaptability. The waterproof seal and zinc alloy activation button are engineered for durability and ease of integration with existing ev charger cable ecosystems. The cable’s jacket material composition is optimized to resist abrasion, UV exposure, and chemical contaminants, supporting longevity in varied environmental conditions. This structural approach allows facility engineers to deploy the cable in both sheltered and outdoor environments without compromising mechanical or electrical performance. The comprehensive compliance with sae j3400 cable supplier standards ensures consistency across multiple charge point implementations.

Operational Performance and User-Centric Features

Performance efficiency is enhanced with multiple current rating options, enabling end users to select amperage suited to their power availability and charging speed requirements. The custom nacs charging cable supports rapid thermal response via integrated sensors, increasing user safety by preventing thermal overload. Ease of use is amplified through ergonomic design elements that facilitate cable handling, connector insertion, and vehicle port access. This balance of performance and usability maximizes operational availability for fleet managers and station operators, contributing to optimized ROI through minimized downtime and maintenance demands.

Use Scenarios

Commercial Tesla Fleet and Workplace Charging Integration

In corporate fleet management and large-scale workplace environments, the sae j3400 charging cable delivers robust charging capability compliant with Tesla’s NACS standard. Its waterproof and dustproof rating ensures uninterrupted operation in outdoor parking lots subject to varying climatic conditions. The cable’s multiple current ratings enable fleet managers to allocate power intelligently across vehicles, optimizing the charging schedule and reducing peak electric demand charges. Integration with existing charging infrastructure is facilitated by compatibility with common electrical standards and customization options, allowing tailored system deployment within enterprise energy management frameworks.

Public Charging Station Deployment for Tesla EVs

Within public charging station networks, the nacs ev charging cable ensures a reliable connection for Tesla vehicle owners, adhering to SAE J3400 specifications for safe and efficient energy transfer. The cable’s high-quality construction withstands frequent mechanical use and environmental exposure, maintaining performance integrity in high-traffic settings. Customizable branding and length options permit adaptation to different station configurations, supporting brand consistency and user interface standardization. The cable contributes to streamlined operations by enhancing user safety and compliance with regulatory certifications, facilitating seamless integration into diverse municipal or commercial charging ecosystems.

Product Testing
①	‌Water-proof testing	With waterproof seal design and meet IP55/IP65 standards. Can be used even in raining and snowing weather.
②	Vehicle run over testing	Test each charging cable for impedance resistance, high voltage, open / short.
③	Burn-in aging testing	High-voltage real usage testing for 6 hours for each charger.
④	ATE platform	Systematic testing for over / under voltage, Over / under current, CC/CP communication, RCD, leakage protect, grounding.
⑤	Temperature rise testing	Terminal temperature rise: <50K.
⑥	Comprehensive testing	Test each charging cable for impedance resistance, high voltage, open / short.
⑦	Automatic plug testing	Mechanical life: no load plug in / pull out >10000 times.
⑧	Tension testing	Coupled insertion force: >45N <80N.
⑨	Salt spray chamber	Mainly test the metal surface corrosion performance of connector.
⑩	Air-leakage detector	Test waterproof effect of the products.
⑪	Wire bending testing machine	The swing parts move left and right at an angle of 90°; cyclic bending to test the bending resistance of the jack and conductor of the cable.
⑫	Glow wire tester	Test the stability of electrical products, parts at high temperatures can not ignite or ignite other parts.
⑬	Constant temperature & humidity box	Simulated outdoor environment: high temperature, low temperature and humidity staggered cycletest to verify the service life of the product in different environments.
⑭	Tracking test Apparatus	Detect the failure of the insulating material itself or the insulating function caused by the conductive substances deposited on the surface.
⑮	Adhesion tester	Test adhesion power or detaching force of the PC plate on the product.
⑯	RCD tester	Test leakage respond speed and leakage respond value of leakage protection designed in the charger.
⑰	Swing box tester	To simulate in the process of product packaging and transportation whether the product is damaged, scratched, or the inner box is damaged during transportation.
⑱	Wire flexure testing machine	Use to test the bending resistance of wire.
⑲	Aging test	The specimen is subjected to 136°C for 168 hours. Heat aging resistance is assessed by the change in tensile strength before and after aging (≤30%).
⑳	Oil resistance aging test	The European standard wire is tested at 100±2°C for 168 hours, while the American standard wire is tested at 60±2°C for 168 hours, to inspect the specimen for any damage.
㉑	Digital measuring projector	Measuring wire jacket / insulation thickness and eccentricity.
㉒	Core wire withstand voltage test	A set high voltage is applied to rigorously test the insulation strength of the wire, ensuring that the product will not suffer breakdown or electric leakage during use.
