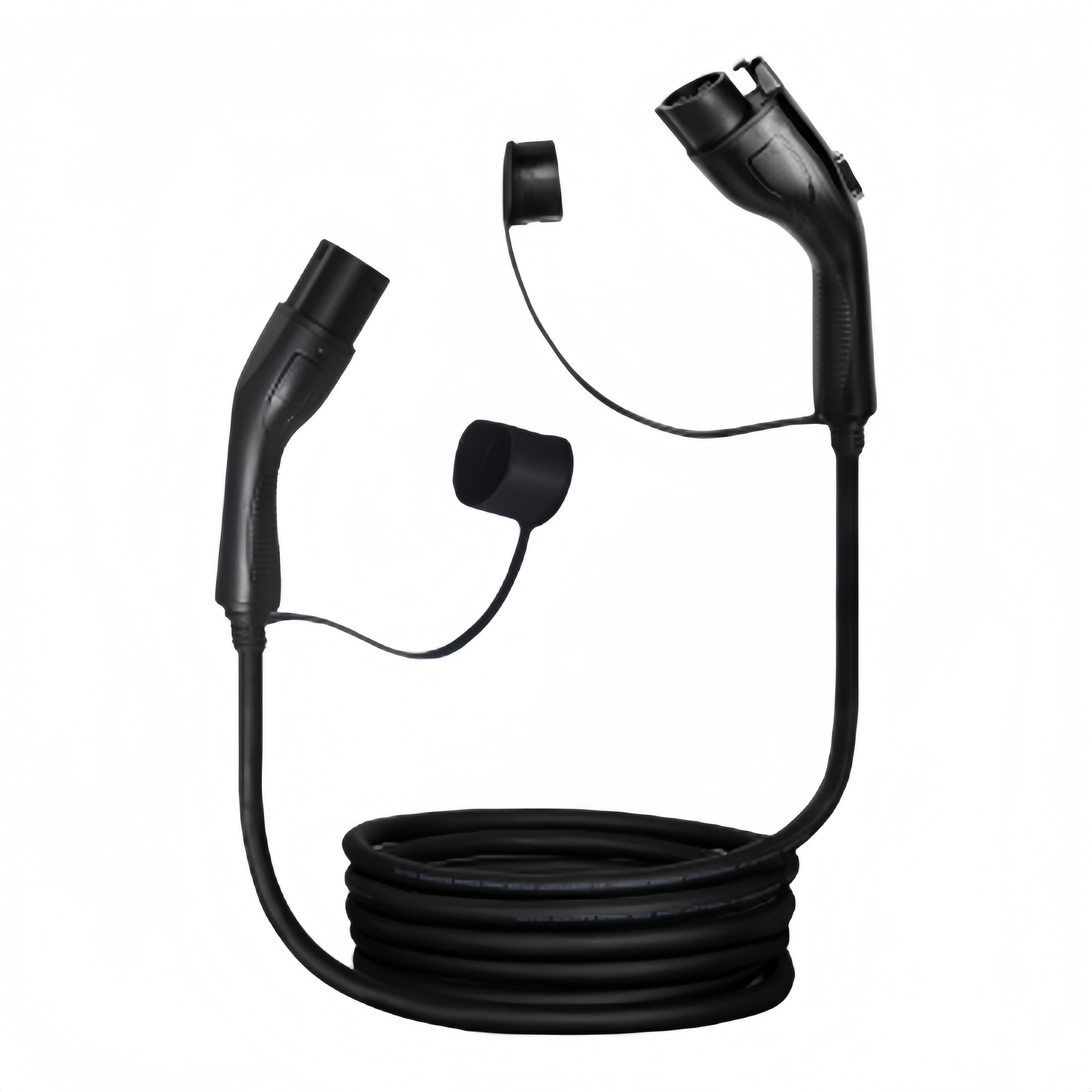

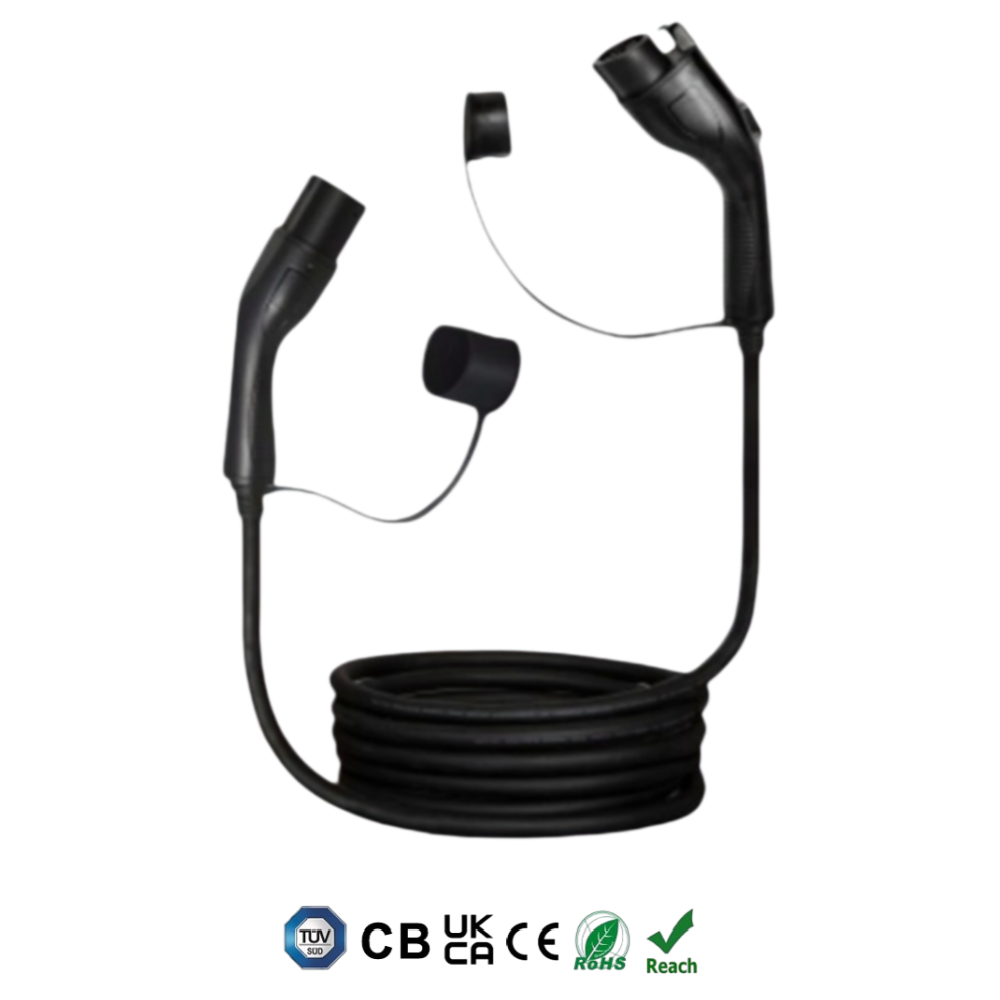

IEC62196 Type 2 to SAE J1772 Type 1 EV Charging Cable | 3.5KW 7KW

Product Description

Comprehensive Compatibility for Diverse Charging Systems

This ev charger cable serves as an essential interface bridging diverse EV charging standards, engineered specifically for fleet operators, OEMs, and infrastructure providers seeking seamless interoperability. As a product offered by a leading nacs charging cable manufacturer, it supports the unification of charging protocols and vehicle interfaces. The availability of a custom nacs charging cable facilitates tailored specifications suited for specialized applications or branding requirements. This solution enables broader deployment of EV infrastructures by addressing standardization challenges inherent in different markets and vehicle models.

Robust Engineering and Defined Electrical Parameters

Our company ensures that the sae j3400 charging cable conforms to stringent industry benchmarks, utilizing durable materials such as TPU jackets that enhance resistance to environmental exposure. The cable supports AC voltages up to 250V and continuous currents calibrated at 16A and 32A, replicating standardized performance for reliable power delivery. Waterproof and dustproof up to IP65, these technical features guarantee reliability in harsh operational conditions. Advanced certifications from recognized authorities further validate conformity to safety and environmental standards, making this sae j3400 cable supplier’s offering compatible with global electrical codes and testing regimens.

Practical Applications Across EV Charging Sectors

The 240v ev charging cable plays a crucial role in enabling cross-border vehicle charging solutions where varying connector types coexist, particularly between European and North American markets. It facilitates integration into home charging environments, commercial fleets, and mobile service units requiring consistent and safe power transfer. The product's design supports compliance in infrastructure projects demanding durable, high-performance cables that ease maintenance and system compatibility. Additionally, the adaptation capabilities of a custom nacs charging cable enhance value for OEM providers and field-testing programs that require connector versatility for prototype validation.

Product Advantages

Enhanced Design Supports Systematic Flexibility

This product exemplifies precision design by a reputed sae j3400 cable supplier, incorporating modular architecture with an emphasis on seamless connector interfacing and protective housing. Features such as TPU jacket encasements and integrated silicon dustproof caps reduce mechanical wear and environmental intrusion risks. The flexibility in cable length and customization offered by the custom nacs charging cable option supports diverse deployment scenarios without compromising electrical integrity. This design paradigm contributes to easier inventory management and quicker integration into existing EV charging infrastructures, promoting operational efficiency across product lifecycles.

Optimized Performance and Engineering Reliability

Performance metrics for this 240v ev charging cable are calibrated to ensure safe and continuous energy transfer with minimal electrical loss, supporting fast and stable charging cycles. User-centric considerations, such as dustproof and waterproof specifications up to IP65, enhance usability in outdoor and industrial environments, mitigating downtime due to environmental exposure. The precision engineering behind the nacs ev charging cable allows maintenance personnel and engineers to rely on uniform quality standards, reducing failure rates and enhancing overall system uptime. The product's compatibility with international safety certifications also reduces regulatory barriers, expediting deployment and operational approval processes.

Use Scenarios

Industrial EV Fleet Charging and Standardization

Within fleet management contexts, this ev charger cable is utilized to standardize power delivery systems across heterogeneous vehicle models. Operating in demanding environments, fleet operators rely on the rugged construction and compliance of this sae j3400 charging cable to withstand frequent connection cycles and diverse weather conditions. Its adaptability as a custom nacs charging cable enables specific fleet requirements such as length adjustments and branded identification facilitate efficient charging station layouts. The cable integrates seamlessly with centralized fleet management software and auto-charging protocols, enhancing operational throughput and resource allocation.

Cross-Border Compatibility for EV Infrastructure Providers

In scenarios where EV infrastructures must bridge geographical standards, this 240v ev charging cable is instrumental in enabling interoperability between SAE and IEC connectors. Infrastructure providers benefit from sourcing this product through a nacs charging cable manufacturer specializing in globally compliant solutions, ensuring deployment without compatibility conflicts. The cable’s technical advantages in waterproofing and standardized electrical parameters facilitate reliable outdoor installations exposed to varied environmental factors. Workflow integration includes dynamic reconfiguration capabilities and compatibility with existing charging station hardware, making it a strategic component in multinational EV charging networks.

Product Testing
①	‌Water-proof testing	With waterproof seal design and meet IP55/IP65 standards. Can be used even in raining and snowing weather.
②	Vehicle run over testing	Test each charging cable for impedance resistance, high voltage, open / short.
③	Burn-in aging testing	High-voltage real usage testing for 6 hours for each charger.
④	ATE platform	Systematic testing for over / under voltage, Over / under current, CC/CP communication, RCD, leakage protect, grounding.
⑤	Temperature rise testing	Terminal temperature rise: <50K.
⑥	Comprehensive testing	Test each charging cable for impedance resistance, high voltage, open / short.
⑦	Automatic plug testing	Mechanical life: no load plug in / pull out >10000 times.
⑧	Tension testing	Coupled insertion force: >45N <80N.
⑨	Salt spray chamber	Mainly test the metal surface corrosion performance of connector.
⑩	Air-leakage detector	Test waterproof effect of the products.
⑪	Wire bending testing machine	The swing parts move left and right at an angle of 90°; cyclic bending to test the bending resistance of the jack and conductor of the cable.
⑫	Glow wire tester	Test the stability of electrical products, parts at high temperatures can not ignite or ignite other parts.
⑬	Constant temperature & humidity box	Simulated outdoor environment: high temperature, low temperature and humidity staggered cycletest to verify the service life of the product in different environments.
⑭	Tracking test Apparatus	Detect the failure of the insulating material itself or the insulating function caused by the conductive substances deposited on the surface.
⑮	Adhesion tester	Test adhesion power or detaching force of the PC plate on the product.
⑯	RCD tester	Test leakage respond speed and leakage respond value of leakage protection designed in the charger.
⑰	Swing box tester	To simulate in the process of product packaging and transportation whether the product is damaged, scratched, or the inner box is damaged during transportation.
⑱	Wire flexure testing machine	Use to test the bending resistance of wire.
⑲	Aging test	The specimen is subjected to 136°C for 168 hours. Heat aging resistance is assessed by the change in tensile strength before and after aging (≤30%).
⑳	Oil resistance aging test	The European standard wire is tested at 100±2°C for 168 hours, while the American standard wire is tested at 60±2°C for 168 hours, to inspect the specimen for any damage.
㉑	Digital measuring projector	Measuring wire jacket / insulation thickness and eccentricity.
㉒	Core wire withstand voltage test	A set high voltage is applied to rigorously test the insulation strength of the wire, ensuring that the product will not suffer breakdown or electric leakage during use.
